Product Overview

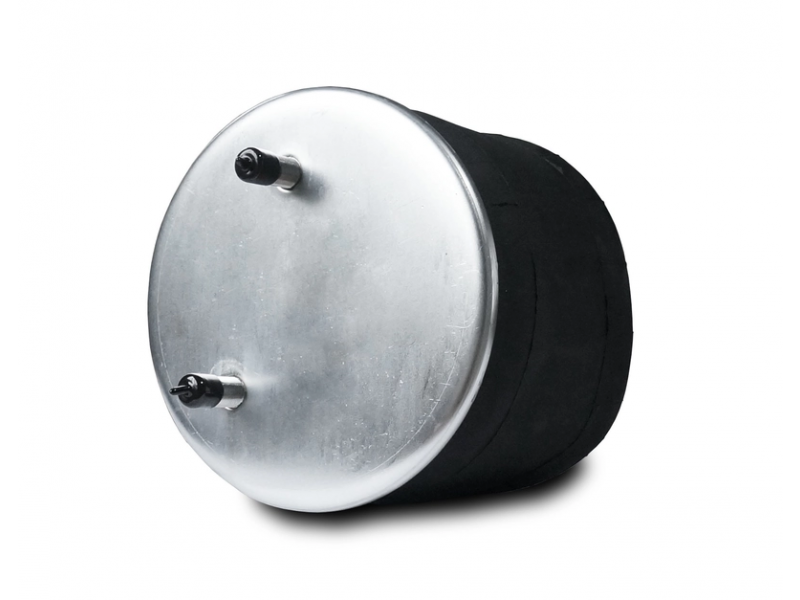

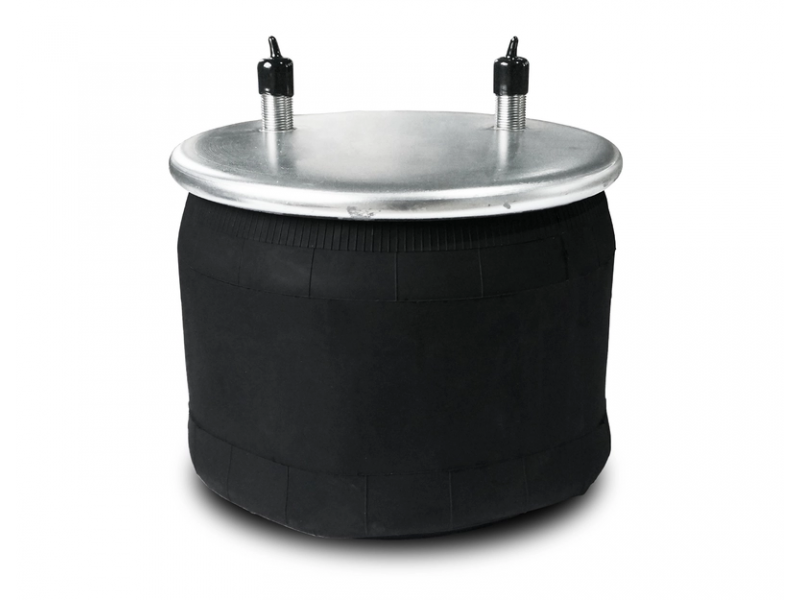

Expopartsplus’ Premium Quality Air Spring is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, it Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, it Ensures Easy installation.
It is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Hendrickson Trailer
| Specifications |
| Attribute |
Value |
| Applications |
Hendrickson Trailer |
| Type |
Rolling Lobe |
| Firestone Bellows# |
1t17b-5 |
| Goodyear Bellows# |
566-26-3-050 |
| Contitech Bellows# |
10 10-15 |
| Triangle Bellows# |
6390 |
| Load (lbs) |
@80 PsI 6760 |
| Load (lbs) |
@100 PsI 8450 |
| Natural Freq. (cpm) |
75 |
| Design Height (In) |
10.50 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
2 |
| Top Plate Dia. (a) |
10.20 |
| Top Plate C To C Dia. (b) |
5.50 |
| Bottom Plate Hole/stud Qty |
4 |
| Bottom Plate Dia. (c) |
10.20 |
| Bottom Plate C To C Dia. (d) |
5.66" |
| Bottom Part # |
Bs17377 |
| Bumper |
Yes |
| Bracket |
N/a |
| Min. Height |
7.10 |
| Max. Height |
19.00 |
| Max. Dia. |
13.70 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| S22045 |
Hendrickson |
| C21623 |
Hendrickson |
| S21623 |
Hendrickson |
| C22045 |
Hendrickson |
| 1R13124 |
Goodyear |
| 8710 |
Firestone |
| 8756 |
Firestone |
| W01-358-8755 |
Firestone |
| AS8755 |
Contitech |
| 64397 |
Contitech |
| G2298755300 |
Neway |
