Product Overview
Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Peterbilt
| Specifications |
| Attribute |
Value |
| Applications |
Peterbilt |
| Type |
Rolling Lobe |
| Brand |
Expopartsplus |
| Firestone Bellows# |
1t15m-4 |
| Goodyear Bellows# |
566-24-3-038 |
| Contitech Bellows# |
9 10-13.5 |
| Triangle Bellows# |
6362 |
| Load (ibs) @80 Psi |
5700 |
| Load (ibs) @100 Psi |
7200 |
| Natural Freq. (cpm) |
76 |
| Design Height (in) |
11.00 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
3 |

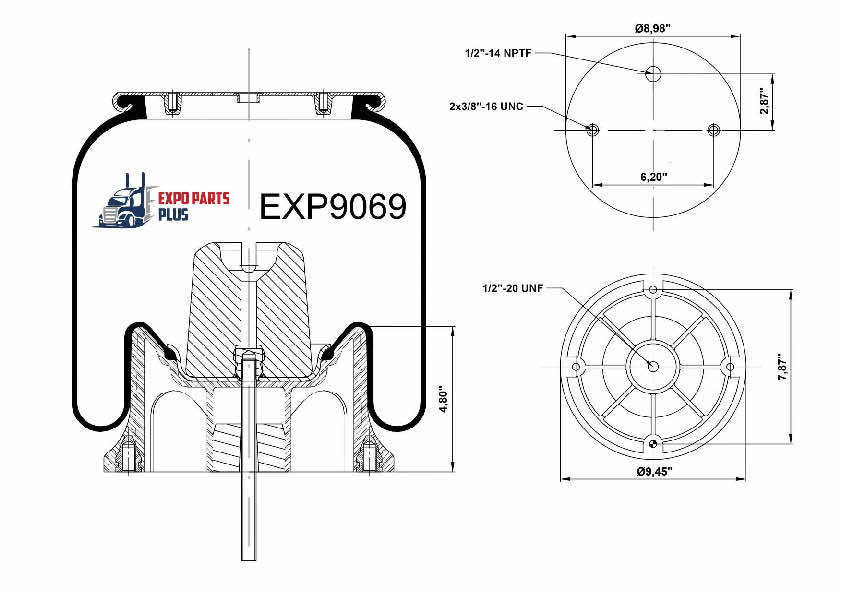

| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
6.20 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
9.53 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs08128 |
| Bumper |
Yes |
| Bracket |
N/a |
| Min. Height |
7.50 |
| Max. Height |
18.80 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| Peterbilt 379 |
(no Year) |
| Cross No |
Cross Brand |
| 85101145 |
Volvo/White |
| 2310042 |
Peterbilt |
| 0306746 |
Peterbilt |
| 0302038 |
Peterbilt |
| 0304759 |
Peterbilt |
| 0307112 |
Peterbilt |
| C816022 |
Peterbilt |
| 0301649 |
Peterbilt |
| 0310042 |
Peterbilt |
| 0302456 |
Peterbilt |
| G2299069200 |
Neway |
| 554764C1 |
IHC |
| SC2034 |
Loadguard |
| S13031 |
Hendrickson |
| 1R121069 |
Goodyear |
| 161020 |
Contitech |
| 1R12-676 |
Goodyear |
| 1R12069 |
Goodyear |
| W01-358-9069 |
Firestone |
| 9069 |
Firestone |
| W017038808 |
Firestone |
| 9 10-14 P 312 |
Contitech |
| W017038923 |
Firestone |
| 64274 |
Contitech |
| AS0077 |
Watson&Chalin |
