Product Overview

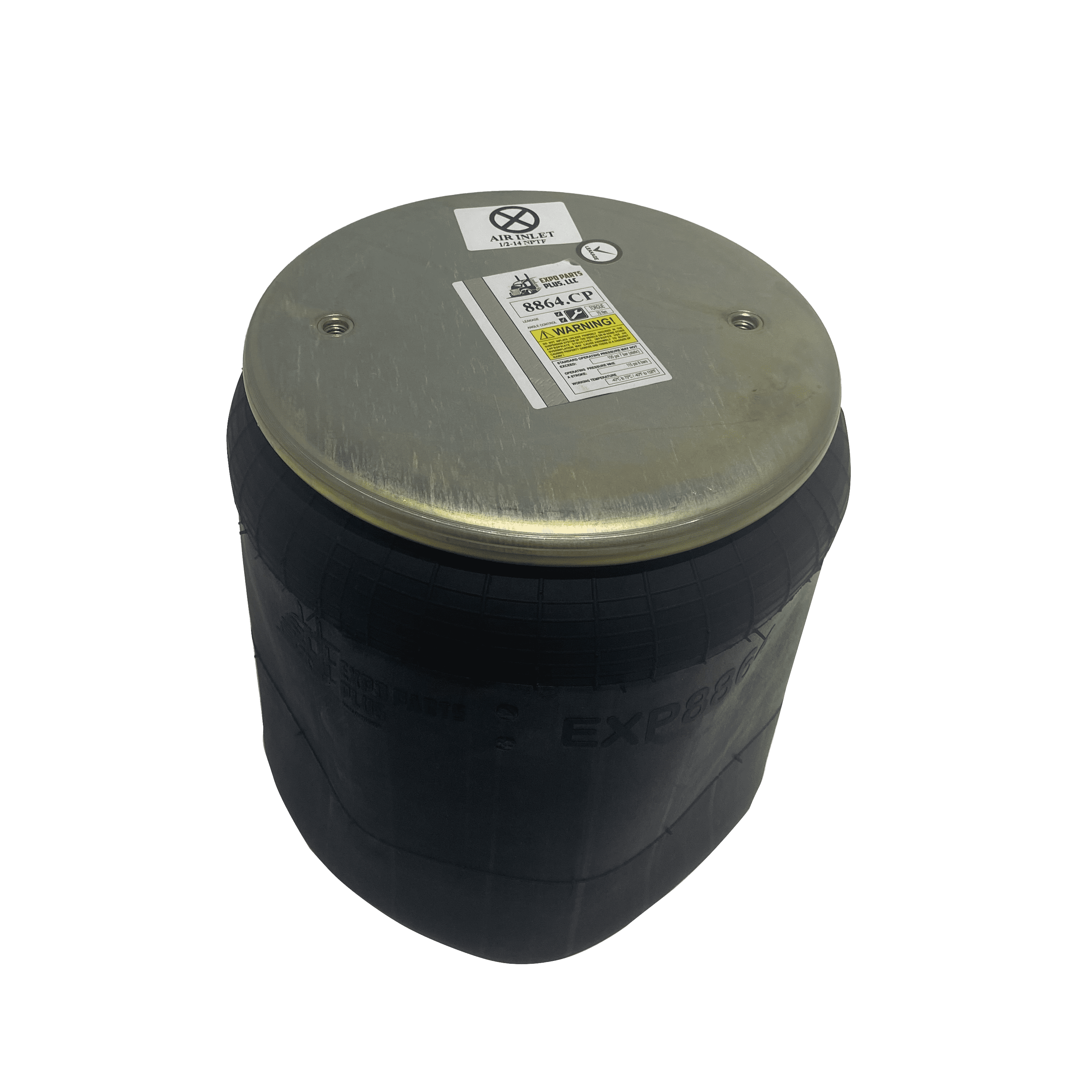

Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Peterbilt / Kenworth
| Specifications |
| Attribute |
Value |
| Applications |
Kenworth Peterbilt |
| Type |
Rolling Lobe |
| Brand |
Expopartsplus |
| Firestone Bellows# |
1t15m-9 |
| Contitech Bellows# |
9 10-19 |
| Triangle Bellows# |
6364 |
| Load (lbs) @80 Psi |
5600 |
| Load (lbs) @100 Psi |
7100 |
| Natural Freq. (cpm) |
65 |
| Design Height (in) |
16.00 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
3 |
| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
6.20 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs08765 |
| Bumper |
No |
| Bracket |
N/a |
| Min. Height |
7.80 |
| Max. Height |
25.20 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| Kenworth |
T660 (no Year) |
| Kenworth |
T680 (no Year) |
| Peterbilt |
379 (no Year) |
| Cross No |
Cross Brand |
| 66666 |
Contitech |
| 9 10-19 P 898 |
Contitech |
| 8865 |
Firestone |
| W017038863 |
Firestone |
| W017038865 |
Firestone |
| W01-358-8864 |
Firestone |
| W016875470 |
Firestone |
| W017038864 |
Firestone |
| 1R121097 |
Goodyear |
| C811013 |
Kenworth |
| C811011 |
Kenworth |
| 308716 |
Peterbilt |
| 0308716 |
Peterbilt |
