Product Overview
Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Kenworth

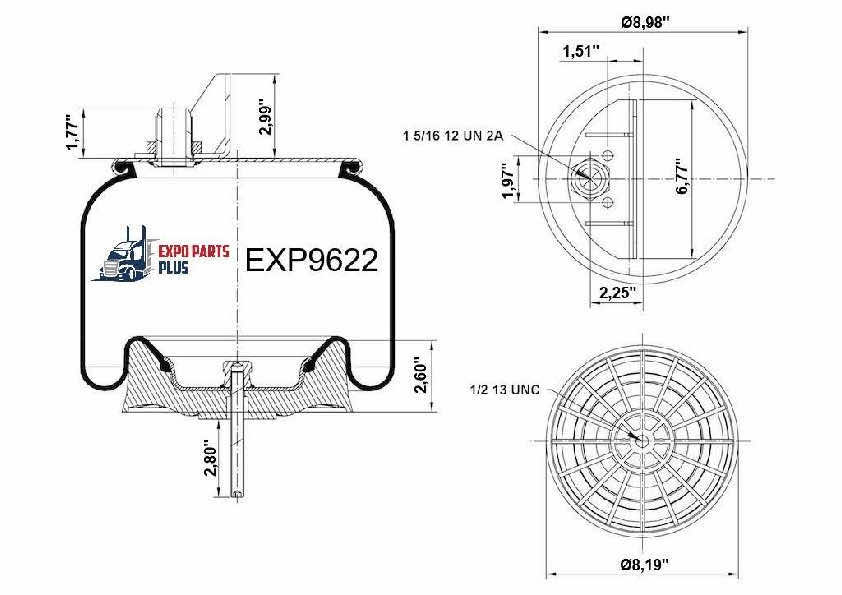

| Specifications |
| Attribute |
Value |
| Applications |
Kenworth |
| Type |
Rolling Lobe |
| Brand |
Expopartsplus |
| Firestone Bellows# |
1t15la-(1), 1t15kw-(1) |
| Goodyear Bellows# |
566-22-3-021 |
| Contitech Bellows# |
9 9-9 |
| Triangle Bellows# |
6397 |
| Load (lbs) @80 Psi |
5100 |
| Load (lbs) @100 Psi |
6400 |
| Natural Freq. (cpm) |
103 |
| Design Height (in) |
7.00 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
1 |
| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
N/a |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
8.19 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs11561 |
| Bumper |
No |
| Bracket |
Ab9618p |
| Min. Height |
3.90 |
| Max. Dia. |
11.40 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| K30322 |
Kenworth |
| 1R11221 |
Goodyear |
| 1R11280 |
Goodyear |
| W013589675 |
Firestone |
| W013589617 |
Firestone |
| 9672 |
Firestone |
| 8537 |
Firestone |
| W01-358-9622 |
Firestone |
| W015449622 |
Firestone |
| 9622 |
Firestone |
| W015449672 |
Firestone |
| 65367 |
Contitech |
| 9 9-9 P 537 |
Contitech |
| 68359 |
Contitech |
