Product Overview
Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Freightliner

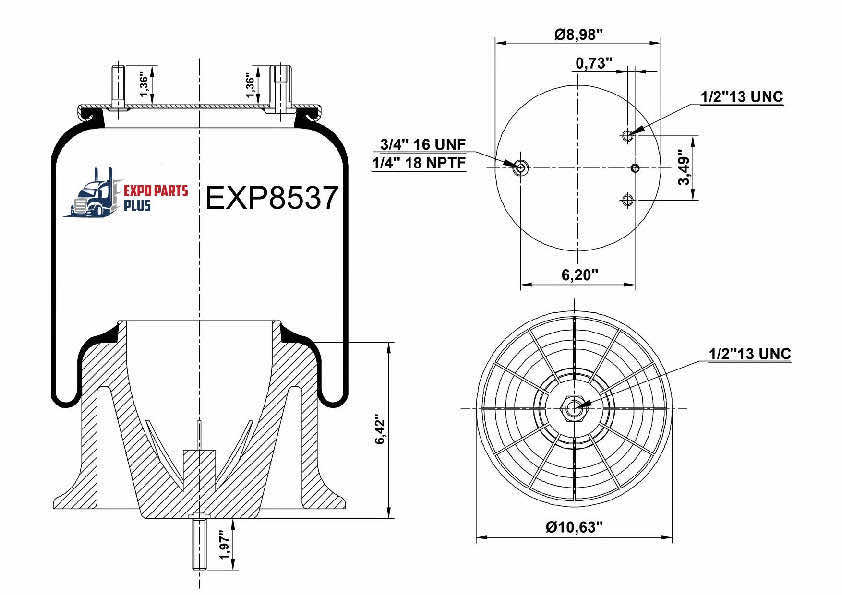

| Specifications |
| Attribute |
Value |
| Applications |
Freightliner |
| Type |
Rolling Lobe |
| Brand |
Expopartsplus |
| Firestone Bellows# |
1t15zr-6 |
| Contitech Bellows# |
9 10s-16 |
| Natural Freq. (cpm) |
79 |
| Design Height (in) |
12.50 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
2 |
| Top Plate Dia. (a) |
9.00 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
10.63 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs12314 |
| Bumper |
No |
| Bracket |
N/a |
| Min. Height |
8.60 |
| Max. Height |
23.00 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| Freightliner |
Cascadia (no Year) |
| Cross No |
Cross Brand |
| 1616825000 |
Freightliner |
| 1614366000 |
Freightliner |
| 1614377000 |
Freightliner |
| 1613810000 |
Freightliner |
| 1613810002 |
Freightliner |
| A1615443000 |
Freightliner |
| 1615595000 |
Freightliner |
| 1616773000 |
Freightliner |
| A1620111000 |
Freightliner |
| A1613668001 |
Freightliner |
| 1616529000 |
Freightliner |
| 1616528000 |
Freightliner |
| 1613801000 |
Freightliner |
| 1619468000 |
Freightliner |
| 6813200017 |
Freightliner |
| W01-358-8537 |
Firestone |
| W013778528 |
Firestone |
| VM19780 |
Firestone |
| W013778530 |
Firestone |
| W013589780 |
Firestone |
| AS8539 |
Contitech |
| 1R121072 |
Goodyear |
| G2299780200 |
Neway |
| AC455580CA |
Sterling |
| 3946472 |
Volvo/White |
| AS01471G |
Watson&Chalin |
