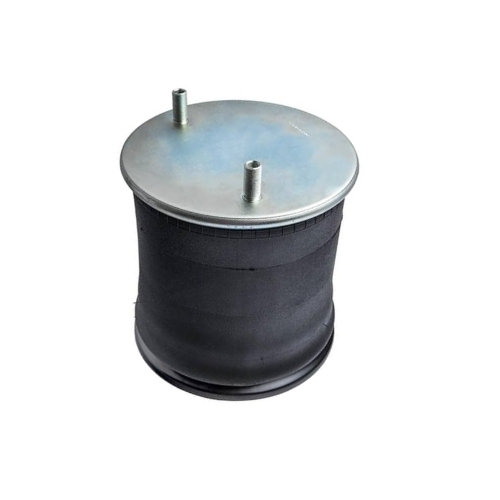

Product Overview
Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Hendrickson
| Specifications |
| Attribute |
Value |
| Applications |
Hendrickson Aux Hendrickson Trailer Reyco Granning Ridewell Watson And Chalin
|
| Type |
Rolling Lobe
|
| Firestone Bellows# |
1t19j-6, 1t19zk-5.7
|
| Goodyear Bellows# |
566-28-3-015
|
| Contitech Bellows# |
11 10.5c-16
|
| Triangle Bellows# |
6367
|
| Load (lbs) @80 Psi |
8200
|
| Load (lbs) @100 Psi |
10400
|
| Natural Freq. (cpm) |
82
|
| Design Height (in) |
10.00
|
| Bottom Plate Type |
Aluminum
|
| Top Plate Hole/stud Qty |
2
|
| Top Plate Dia. (a) |
11.31
|
| Top Plate C To C Dia. (b) |
7.75
|
| Bottom Plate Hole/stud Qty |
4
|
| Bottom Plate Dia. (c) |
11.50
|
| Bottom Plate C To C Dia. (d) |
7.87"
|
| Bottom Part # |
Bs14352
|
| Bumper |
Yes
|
| Bracket |
N/a
|
| Min. Height |
5.40
|
| Max. Height |
18.40 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| SC2052 |
Loadguard |
| 1685174C1 |
IHC |
| S3651413 |
HendricksonTrailer |
| S12514013 |
HendricksonTrailer |
| B4771 |
HendricksonTrailer |
| B12514013 |
HendricksonTrailer |
| 1R14083 |
Goodyear |
| 1R14-039 |
Goodyear |
| W013588050 |
Firestone |
| W013585523 |
Firestone |
| 8050 |
Firestone |
| 5523 |
Firestone |
| 64254 |
Contitech |
| 161455 |
Contitech |
| 160994 |
Contitech |
| 11 10.5C-16 A 320 |
Contitech |
| 57008050 |
Neway |
| G2298050400 |
Neway |
| 2363101 |
Reyco |
| 3130498 |
Volvo |
