Product Overview

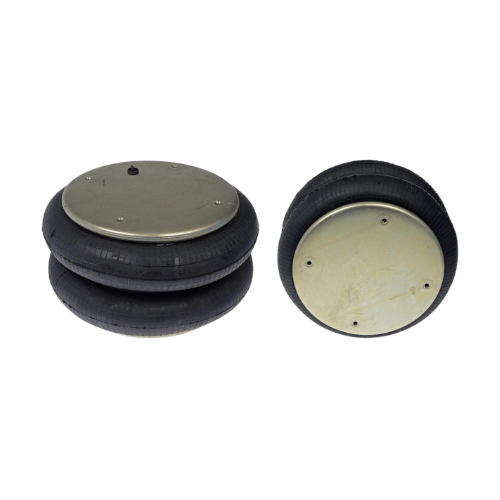

Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Hendrickson / Aux Page / Reyco Granning / Ridewell / Watson And Chalin
| Specifications |
| Attribute |
Value |
| Applications |
Hendrickson Aux Page Reyco Granning Ridewell Watson And Chalin |
| Type |
Double Convoluted |
| Firestone Bellows# |
21 |
| Goodyear Bellows# |
578-92-3-353 |
| Contitech Bellows# |
Fd 530-22 |
| Triangle Bellows# |
6329, 6329 |
| Load (lbs) @80 Psi |
6800 |
| Load (lbs) @100 Psi |
8500 |
| Natural Freq. (cpm) |
100 |
| Design Height (in) |
9.8 |
| Top Plate Hole/stud Qty |
4 |
| Top Plate Dia. (a) |
11.31 |
| Top Plate C To C Dia. (b) |
6.25 |
| Bottom Plate Hole/stud Qty |
4 |
| Bottom Plate Dia. (c) |
11.31 |
| Bottom Plate C To C Dia. (d) |
6.250 |
| Bottom Plate Alignment |
Parallel |
| Bumper |
Yes |
| Min. Height |
4.10 |
| Max. Height |
12.50 |
| Max. Dia. |
15.20 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| AS0004 |
Watson&Chalin |
| 3130489 |
Volvo |
| 1003587136C |
Ridewell |
| 1027556 |
Page |
| 57007136 |
Neway |
| SC2014 |
Loadguard |
| 554798C1 |
IHC |
| S1080 |
Hendrickson |
| B1080 |
Hendrickson |
| 1626 |
Granning |
| 2B14356 |
Goodyear |
| W013587136 |
Firestone |
| 7136 |
Firestone |
| 64545 |
Contitech |
| FD 530 22 321 |
Contitech |
| 161328 |
Contitech |
