Product Overview

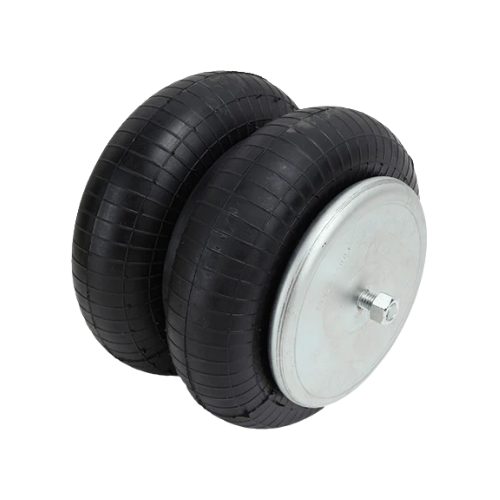

Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Hendrickson Aux
| Specifications |
| Attribute |
Value |
| Applications |
Hendrickson Aux |
| Type |
Double Convoluted |
| Firestone Bellows# |
20 |
| Goodyear Bellows# |
578-92-3-250 |
| Contitech Bellows# |
Fd 200-19 |
| Triangle Bellows# |
6395 |
| Load (lbs) @80 Psi |
2560 |
| Load (lbs) @100 Psi |
3200 |
| Natural Freq. (cpm) |
108 |
| Design Height (in) 8.00 |
|
| Top Plate Hole/stud Qty |
1 |
| Top Plate Dia. (a) |
6.31 |
| Top Plate C To C Dia. (b) |
N/a |
| Bottom Plate Hole/stud Qty |
2 |
| Bottom Plate Dia. (c) |
3.50 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bumper |
No |
| Min. Height |
3.00 |
| Max. Height |
10.50 |
| Max. Dia. |
9.80 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| 003317 |
HendricksonAux |
| R003317 |
HendricksonAux |
| 3317 |
Hendrickson |
| B14486 |
Hendrickson |
| 2B10226 |
Goodyear |
| W013587795 |
Firestone |
| 7795 |
Firestone |
| W014557795 |
Firestone |
| 67705 |
Contitech |
| FD 200 19 713 |
Contitech |
| S14486 |
HendricksonTrailer |
| 3098611 |
Volvo/White |
| AS01461G |
Watson&Chalin |
