Product Overview

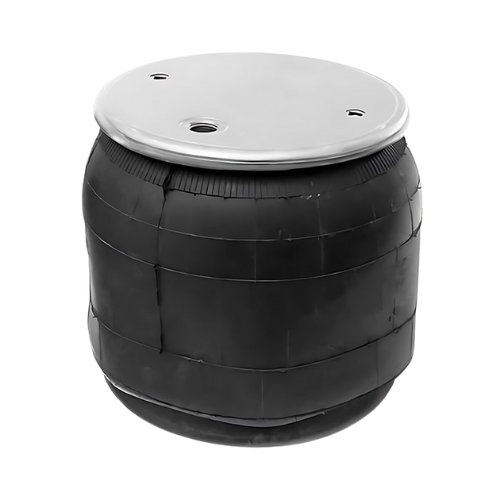

Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Kenworth / Peterbilt
| Specifications |
| Attribute |
Value |
| Applications |
Kenworth Peterbilt |
| Type |
Rolling Lobe |
| Firestone Bellows# |
1t15m-4 |
| Contitech Bellows# |
9 10-13.5 |
| Load (lbs) @80 Psi |
5700 |
| Load (lbs) @100 Psi |
7200 |
| Natural Freq. (cpm) |
76 |
| Design Height (in) |
11.00 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
3 |
| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
6.20 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
9.53 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs08128 |
| Bumper |
Yes |
| Bracket |
N/a |
| Min. Height |
7.10 |
| Max. Height |
18.80 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| Kenworth |
T660 |
| Peterbilt |
379 |
| Cross No |
Cross Brand |
| 65990 |
Contitech |
| 910-14P577 |
Contitech |
| W015448814 |
Firestone |
| 8813 |
Firestone |
| W015448812 |
Firestone |
| W017038814 |
Firestone |
| 8812 |
Firestone |
| 8814 |
Firestone |
| W017038812 |
Firestone |
| W017038813 |
Firestone |
| W015448813 |
Firestone |
| W013588813 |
Firestone |
| 1R121204 |
Goodyear |
| C811003 |
Kenworth |
| C811012 |
Peterbilt |
| C816000 |
Peterbilt |
