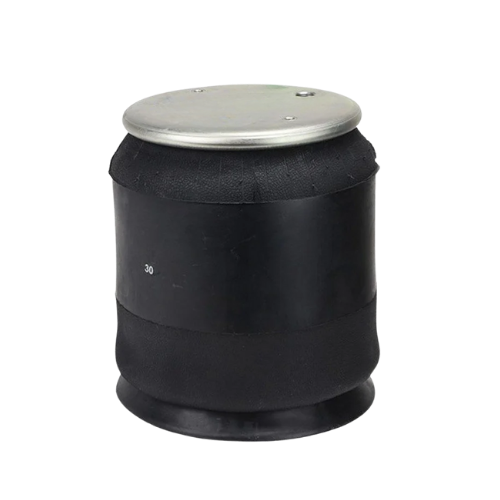

Product Overview
Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Peterbilt
| Specifications |
| Attribute |
Value |
| Applications |
Peterbilt |
| Type |
Rolling Lobe |
| Firestone Bellows# |
1t15m-6 |
| Goodyear Bellows# |
566-24-3-038 |
| Contitech Bellows# |
9 10-16 |
| Triangle Bellows# |
6363 |
| Load (lbs) @80 Psi |
5500 |
| Load (lbs) @100 Psi |
7000 |
| Natural Freq. (cpm) |
70 |
| Design Height (in) |
13.50 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
3 |
| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
6.20 |
| Bottom Plate Hole/stud Qty |
1 |
| Bottom Plate Dia. (c) |
10.28 |
| Bottom Plate C To C Dia. (d) |
N/a |
| Bottom Part # |
Bs14552 |
| Bumper |
No |
| Bracket |
N/a |
| Min. Height |
6.70 |
| Max. Height |
21.50 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| Peterbilt |
379 |
| Cross No |
Cross Brand |
| 0307111 |
Peterbilt |
| 0306213 |
Peterbilt |
| 1R12567 |
Goodyear |
| W017039026 |
Firestone |
| W017038926 |
Firestone |
| W013589026 |
Firestone |
| 9026 |
Firestone |
| 64306 |
Contitech |
