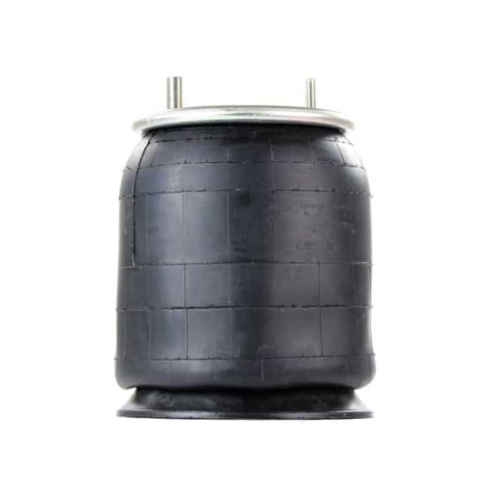

Product Overview
Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Neway Holland Trailer /
Neway Holland Lift / Ridewell Trailer
| Specifications |
| Attribute |
Value |
| Applications |
Reyco Granning Ridewell Saf Holland/neway Watson And Chalin |
| Type |
Rolling Lobe |
| Firestone Bellows# |
1t15m-9 |
| Goodyear Bellows# |
566-24-3-066, 566-24-3-054 |
| Contitech Bellows# |
9 10-19 |
| Triangle Bellows# |
6364 |
| Load (lbs) @80 Psi |
5700 |
| Load (lbs) @100 Psi |
7200 |
| Natural Freq. (cpm) |
60 |
| Design Height (in) |
15.50 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/stud Qty |
2 |
| Top Plate Dia. (a) |
9.00 |
| Top Plate C To C Dia. (b) |
5.50 |
| Bottom Plate Hole/stud Qty |
4 |
| Bottom Plate Dia. (c) |
10.28 |
| Bottom Plate C To C Dia. (d) |
7.87" |
| Bottom Part # |
Bs08129 |
| Bumper |
Yes |
| Bracket |
N/a |
| Min. Height |
9.90 |
| Max. Height |
24.60 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| 1003589101C |
Ridewell |
| 1288301 |
Reyco |
| 10590 |
Phoenix |
| 1KK36 |
Oshkosh |
| AR14151F |
Neway |
| 90057008 |
Neway |
| AR14151G |
Neway |
| 90557008 |
Neway |
| 90557009 |
Neway |
| 90044201 |
Neway |
| 90557043 |
Neway |
| 90044701 |
Neway |
| 90557082 |
Neway |
| 90054218 |
Neway |
| 23AS83 |
McNeilus&Man |
| SC2038 |
Loadguard |
| 554768C1 |
IHC |
| S10443 |
Hendrickson |
| S3842 |
Hendrickson |
| B3842 |
Hendrickson |
| 1R12103 |
Goodyear |
| 1R12113 |
Goodyear |
| W01-358-9101 |
Firestone |
| 9101 |
Firestone |
| 518-15082-14 |
EastTrailer |
| 64279 |
Contitech |
| 910-19P315 |
Contitech |
| S5828C |
Ridewell |
| S740C |
Ridewell |
| AS5049101 |
Taurus |
| 63647 |
Truckstell |
| 85101149 |
Volvo/White |
| 3130490 |
Volvo/White |
| AS0040 |
Watson&Chalin |
