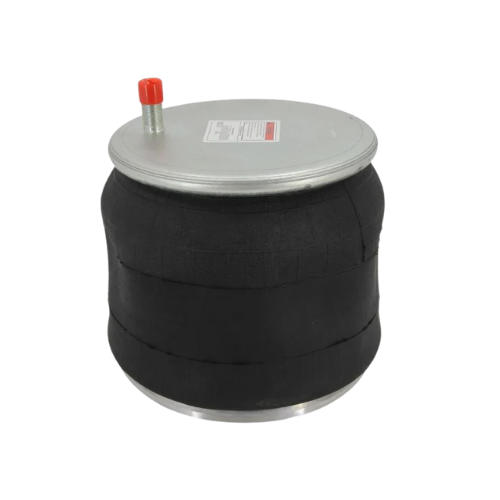

Product Overview
Expopartsplus’ Premium Quality Air Spring Is Designed To Maintain Vehicle Height Consistently. Manufactured To Meet Oem Standards, It Minimizes Vibrations And Load Fluctuations. Engineered To Provide A Comfortable Ride For Both Driver And Cargo, These Long-lasting Air Springs Ensure A Quiet And Balanced Driving Experience. We’re Committed To Keeping Trucks On The Road!
Specific Features
Expopartsplus Offers High-quality Raw Materials And Expert Manufacturing For Superior Performance.
Its Plastic Base Reduces Weight While Providing Cost Savings.
Designed With Oem-standard Dimensions, It Ensures Easy Installation.
It Is Highly Resistant To Oil, Lubricants, And Adverse Weather Conditions.
Engineered To Be Long-lasting And Environmentally Friendly.
Where Used
Hendrickson Trailer
| Specifications |
| Attribute |
Value |
| Applications |
Hendrickson Trailer |
| Type |
Rolling Lobe |
| Firestone Bellows# |
1t15mt-3 |
| Goodyear Bellows# |
566-24-3-076 |
| Contitech Bellows# |
9 10-12 |
| Triangle Bellows# |
6388 |
| Load (lbs) @80 Psi |
5700 |
| Load (lbs) @100 Psi |
7200 |
| Natural Freq. (cpm) |
82 |
| Design Height (in) |
9.00 |
| Bottom Plate Type |
Aluminum |
| Top Plate Hole/stud Qty |
1 |
| Top Plate Dia. (a) |
9.00 |
| Bottom Plate Hole/stud Qty |
4 |
| Bottom Plate Dia. (c) |
9.50 |
| Bottom Plate C To C Dia. (d) |
4.00" |
| Bottom Part # |
Bs09183 |
| Bumper |
Yes |
| Bracket |
N/a |
| Min. Height |
5.40 |
| Max. Height |
15.50 |
| Max. Dia. |
12.60 |
| Serial Brand |
Serial No |
| No |
Series |
| Cross No |
Cross Brand |
| SC2758 |
Loadguard |
| C20223 |
Hendrickson |
| S20223 |
Hendrickson |
| 1R12367 |
Goodyear |
| 9640 |
Firestone |
| 9630 |
Firestone |
| W013589640 |
Firestone |
| W013589630 |
Firestone |
| 910-12A427 |
Contitech |
| 64395 |
Contitech |
| G2299640400 |
Neway |
| 3098612 |
Volvo/White |
